Electric Actuator/Guide Rod Type LEYG

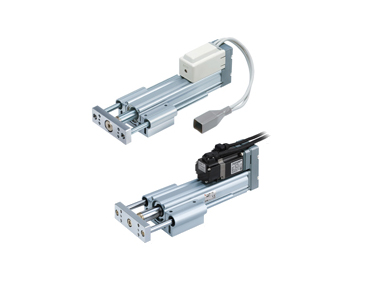

img-LEYG

Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC)

  • Compact integration of guide rods
    Achieves lateral load resistance and high non-rotating accuracy.
  • Lateral end load: 5 times more (compared with rod type, size 25 and 100 stroke)
  • Compatible with sliding bearing and ball bushing bearing.
    Compatible with moment load and stopper (sliding bearing).
  • Speed control/Positioning: Max. 64 points
  • Positioning and pushing control can be selected.
    Possible to hold the actuator when pushing the rod to a workpiece, etc.
  • Positioning repeatability: ±0.02 mm or less
  • Compatible controllers: LECP6，LECA6，LECP1，LECPA，LECPMJ

Series LEY AC Servo Motor

  • High output motor (100/200 W)
  • Improved high speed transfer ability
  • High acceleration/deceleration compatible （5,000mm/S²）
  • Pulse input type
  • With internal absolute encoder
  • Compatible drivers: LECSA，LECSB，LECSC，LECSS
  • Motorless specification available Click here for details
Related Downloads
Product Catalog
2D CAD File
3D CAD File
Manual
DoC
Spec. Model Stroke
(mm)		 Pushing force [N]/
Vertical work load
(kg)		 Speed
(mm/s)		 Screw lead
(mm)
Step motor
(Servo/24 VDC) 		LEYG16 30 to 200 MAX.141 MAX.500 2.5，5，10
Step motor
(Servo/24 VDC) 		LEYG25 30 to 300 MAX.452 MAX.500 3，6，12
Step motor
(Servo/24 VDC) 		LEYG32 30 to 300 MAX.707 MAX.500 4，8，16
Step motor
(Servo/24 VDC) 		LEYG40 30 to 300 MAX.1058 MAX.300 4，8，16
Servo moto
(24 VDC) 		LEYG16A 30 to 200 MAX.111 MAX.500 2.5，5，10
Servo moto
(24 VDC) 		LEYG25A 30 to 300 MAX.130 MAX.500 3，6，12
AC servo motor LEYG25S 30 to 300 MAX.485 MAX.900 3，6，12
AC servo motor LEYG32S 30 to 300 MAX.588 MAX.1200 5，10，20
